Multiple Event Rules

Multiple Event Rules

You can create rules to detect and flag ECG events that occur multiple times within a specific period. For example, if a patient experiences more than three pauses within an hour, an alert can be generated.

Steps to Configure Multiple Event Rules

1. Add Multiple ECG Event Rules:
   • Click the “Add ECG Multiple Events Rules” button to begin configuration.

2. Select Event Type and Occurrence Threshold:
   • Choose the type of ECG event you want to monitor, such as pauses, arrhythmias, or other irregularities.

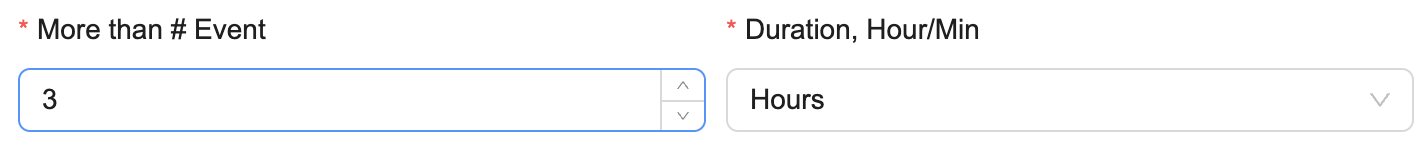

• Specify the number of occurrences that trigger the rule within a set duration (e.g., if there are more than three pauses in one hour, the multiple event will be triggered when the fourth event occurs within the hour).

3. Flagging on the Web Portal:

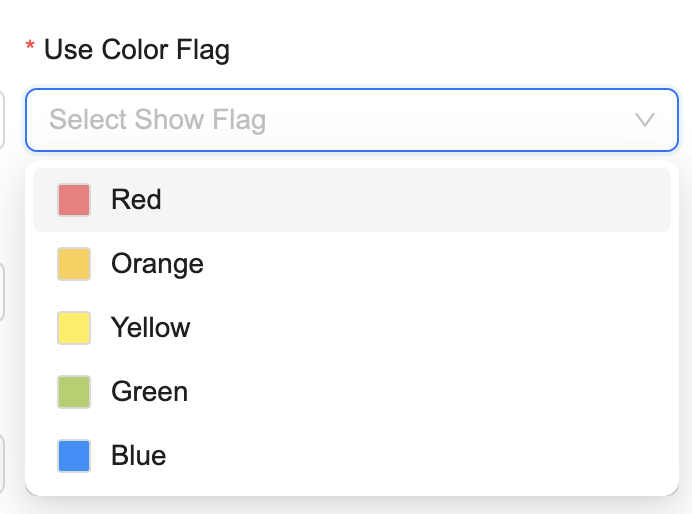

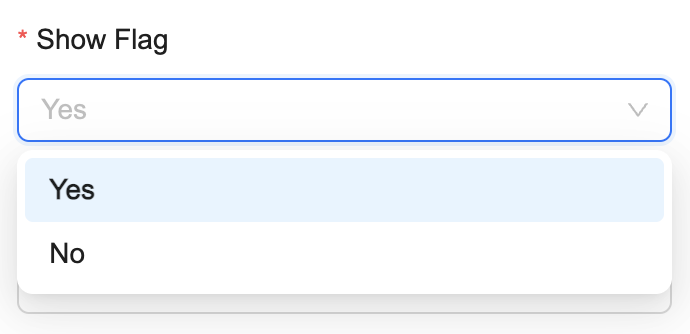

   • Indicate how these multiple events should be flagged on the Web Portal to ensure they are clearly visible and actionable.

4. Set Up Notifications:

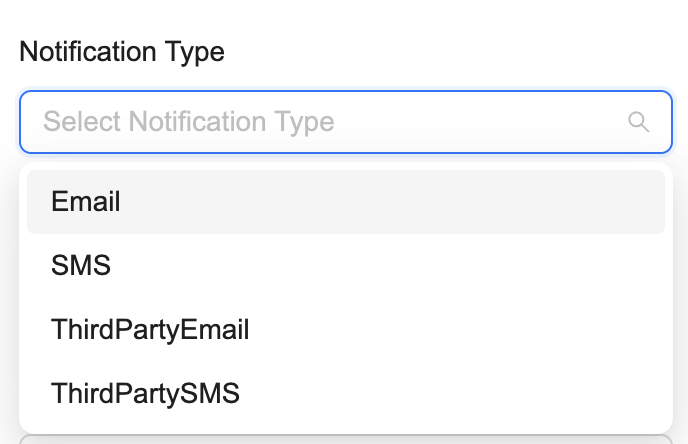

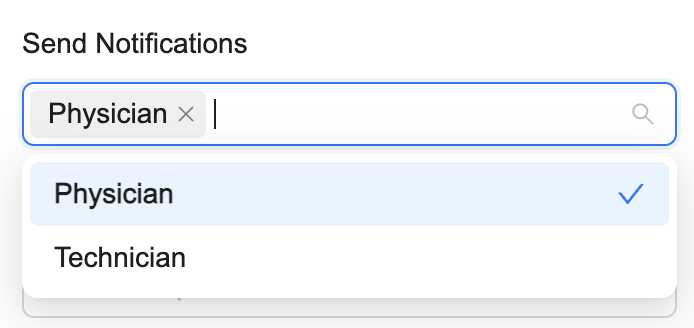

   • If desired, configure notification settings to alert the appropriate individuals, such as healthcare providers or research staff, via email or SMS when the specified conditions are met.
