Retrospective ECG Overread

Retrospective ECG Overread

To review and adjudicate ECG Analysis results, follow these steps:

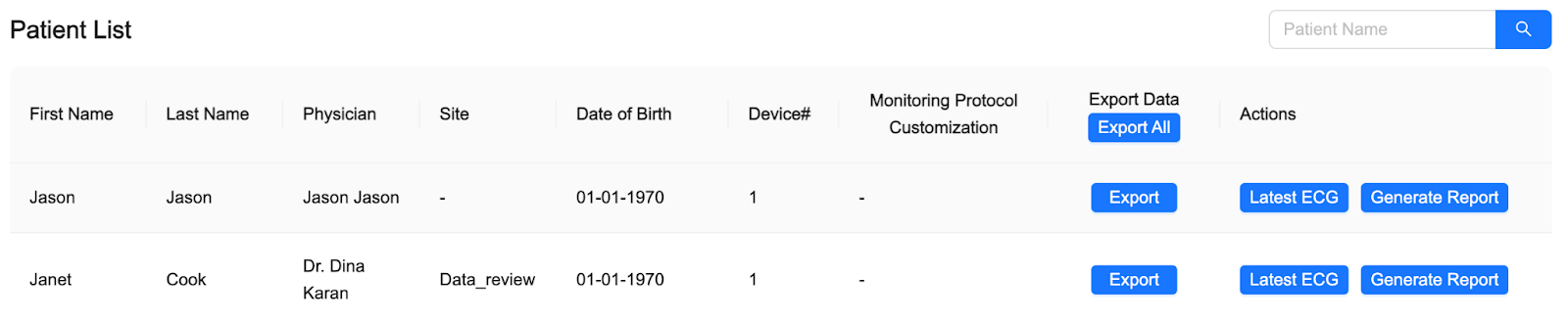

1. Navigate to the Patients List:

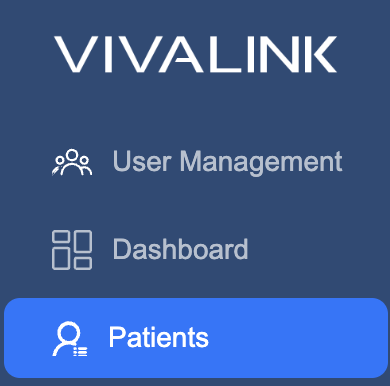

   • Select the “Patients” button from the blue left navigation menu. This will display a list of all patients or participants currently assigned ECG patches.

2. Select a Patient/Participant:
   • Click on the name of a specific patient or participant to bring up a list, organized by day, of all incidents that have been detected for that individual.

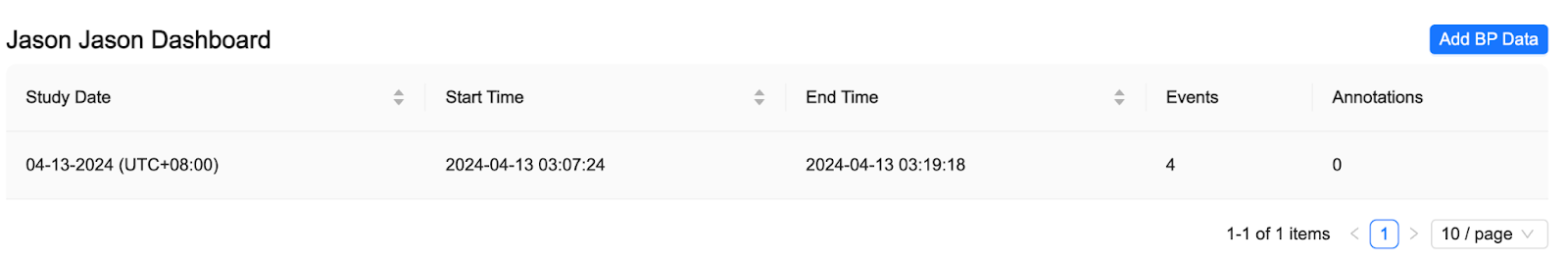

3. Review Daily Data:
   • Click on a specific day to view the data and analysis for that day. This allows you to examine the recorded ECG data in detail.

4. Reviewing ECG Events (Event View)

   • The events list shows all the categorized ECG events, depending on how the Monitoring Protocol was configured. If there are multiple incidents, they will be grouped by type. Click on the drop-down arrow to expand the listed events.
   • A red dot will be placed before each event's name to identify unreviewed events. When a Web Portal user views an event, the red dot will be removed from everyone's view.
   • When you click on an event, the ECG Full Disclosure View shows the ECG waveform, which is marked with vertical green lines showing the beginning and end of the event.
   • You can scroll or click on the arrows to move to the left or right of the detected event to view the context or onset/offset of the rhythm abnormalities.
