Reviewing Multi Vitals Data

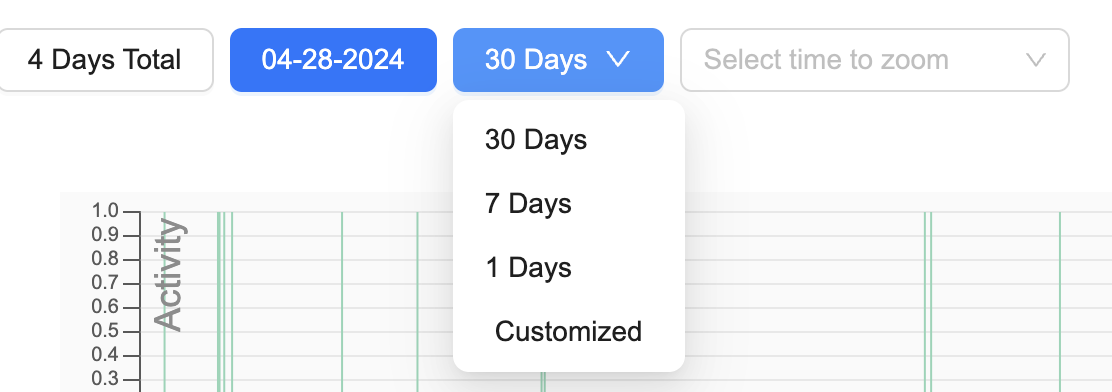

The Multi Vitals tab provides a chronological display of sensor data. By default, it shows all data for a single day, but you can adjust the view to cover a 7-day, 30-day, or custom time period.
The data timelines for each parameter, depending on the wearable sensors in use, are displayed. For this study, which only uses the ECG Patch, activity, heart, and respiratory rate data will be displayed and plotted in green.
- Event Detection: A red “X” on the timeline indicates events that have been detected based on the monitoring protocol you selected for the patient or participant.

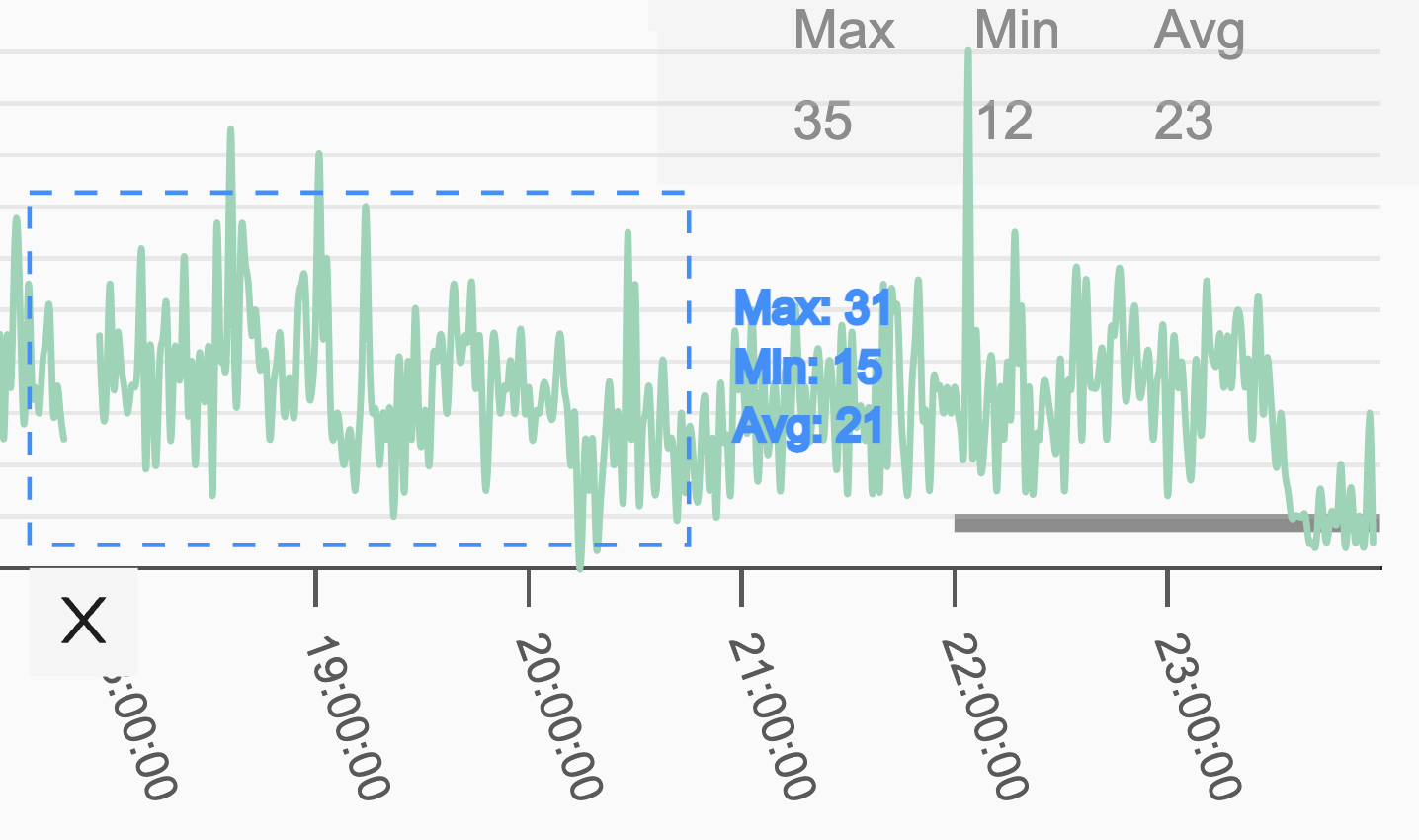

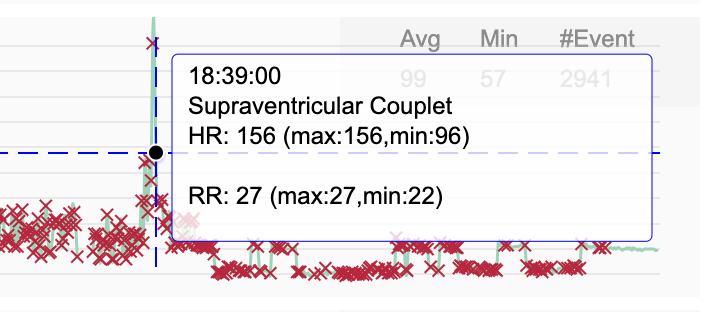

- Data Exploration: Hover your mouse over the timeline to see the measured values and events at specific points. You can also use the Caliper tool to select a segment and view the average, minimum, and maximum values within that segment.

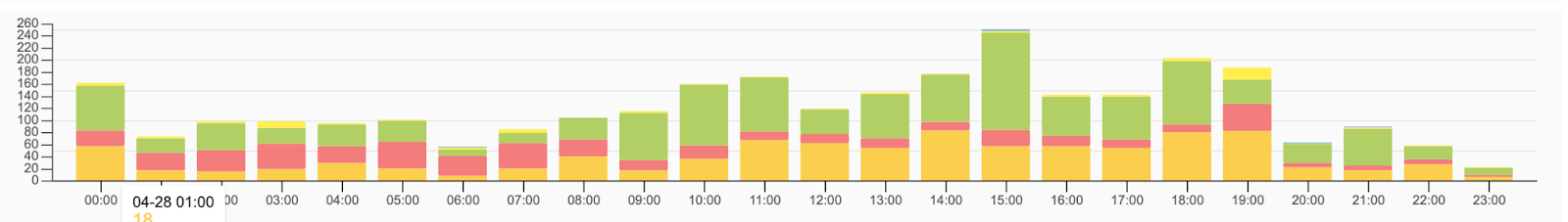

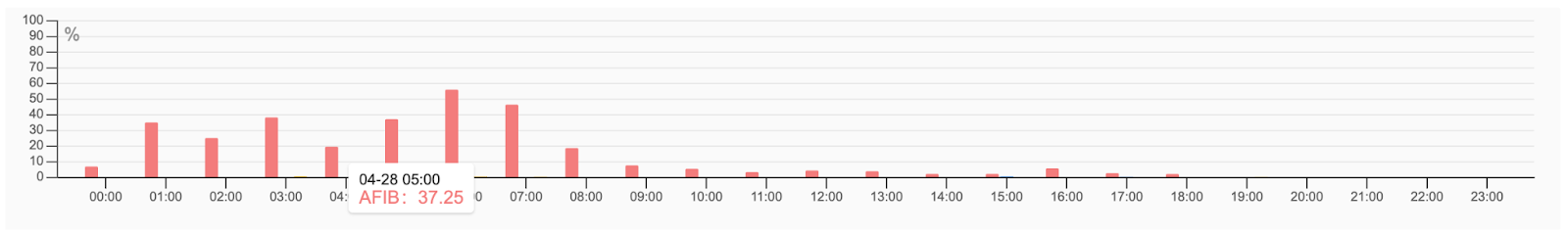

- Event Summary: The bar chart in the Multi Vitals tab provides an hourly summary of detected events (ECG), color-coded according to the monitoring protocol.

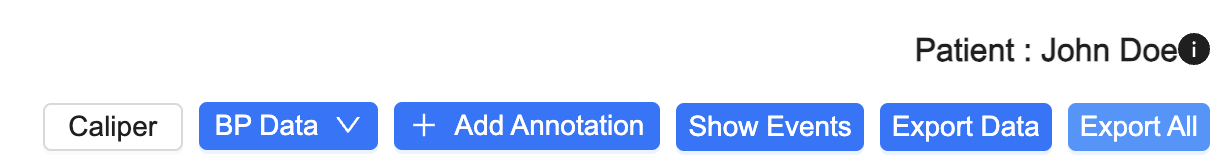

If you need to capture any observations, click the “+Add Annotation” button. The annotation will be saved in the patient’s or participant's record, and a notification will be sent to the patient’s or participant’s physician unless you are the assigned physician.
